The ATEK Lift DM 1000 Series is a professional tailgate lift solution developed for trucks in the 3.5–7.5 ton range. Designed for daily distribution operations, this series stands out with its balanced power, durable structure, and high vehicle compatibility.

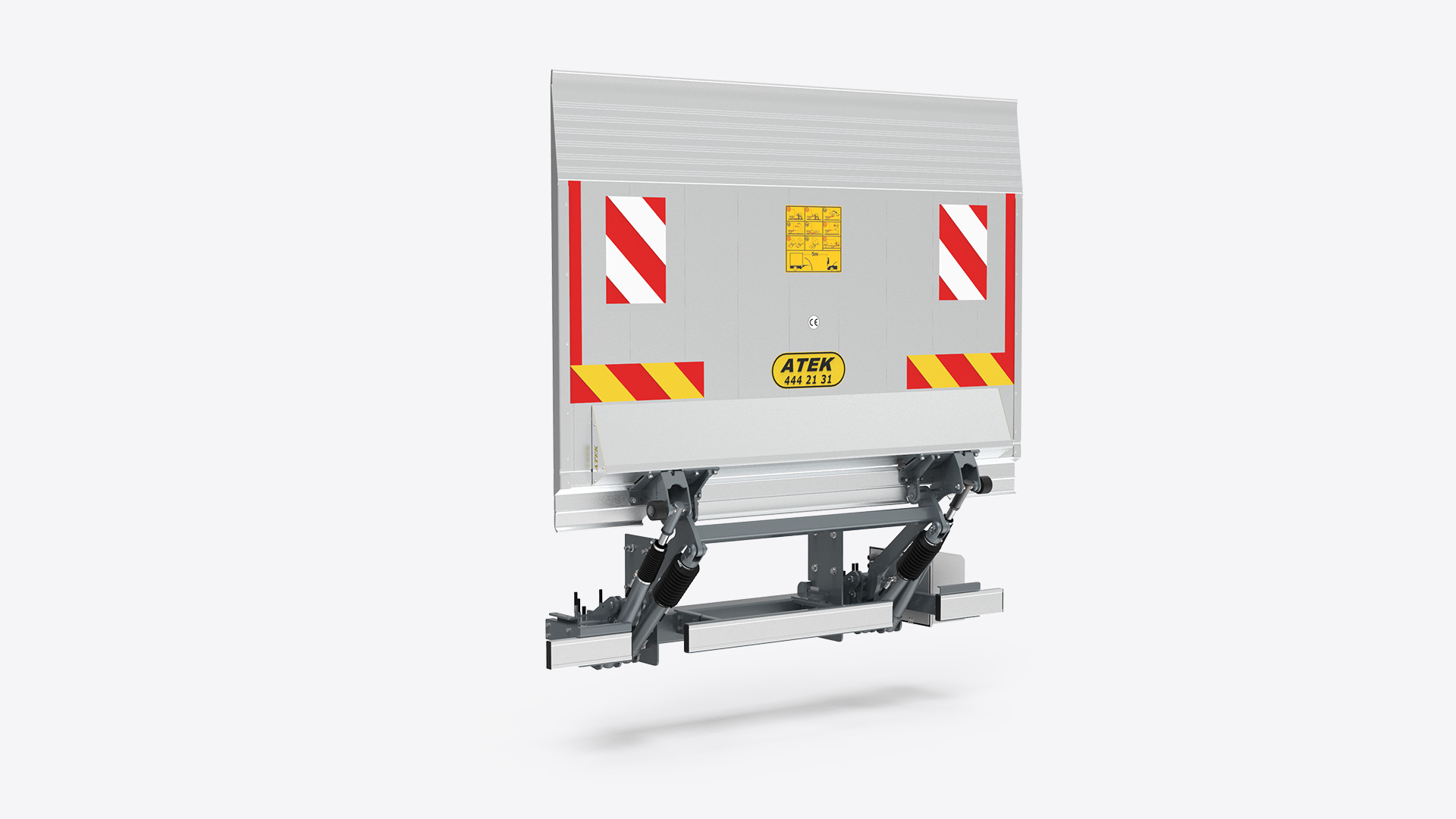

The DM 1000 Series is equipped with a four-piston hydraulic system and mechanical-type automatic folding technology. This construction maintains platform stability and provides controlled movement under load.

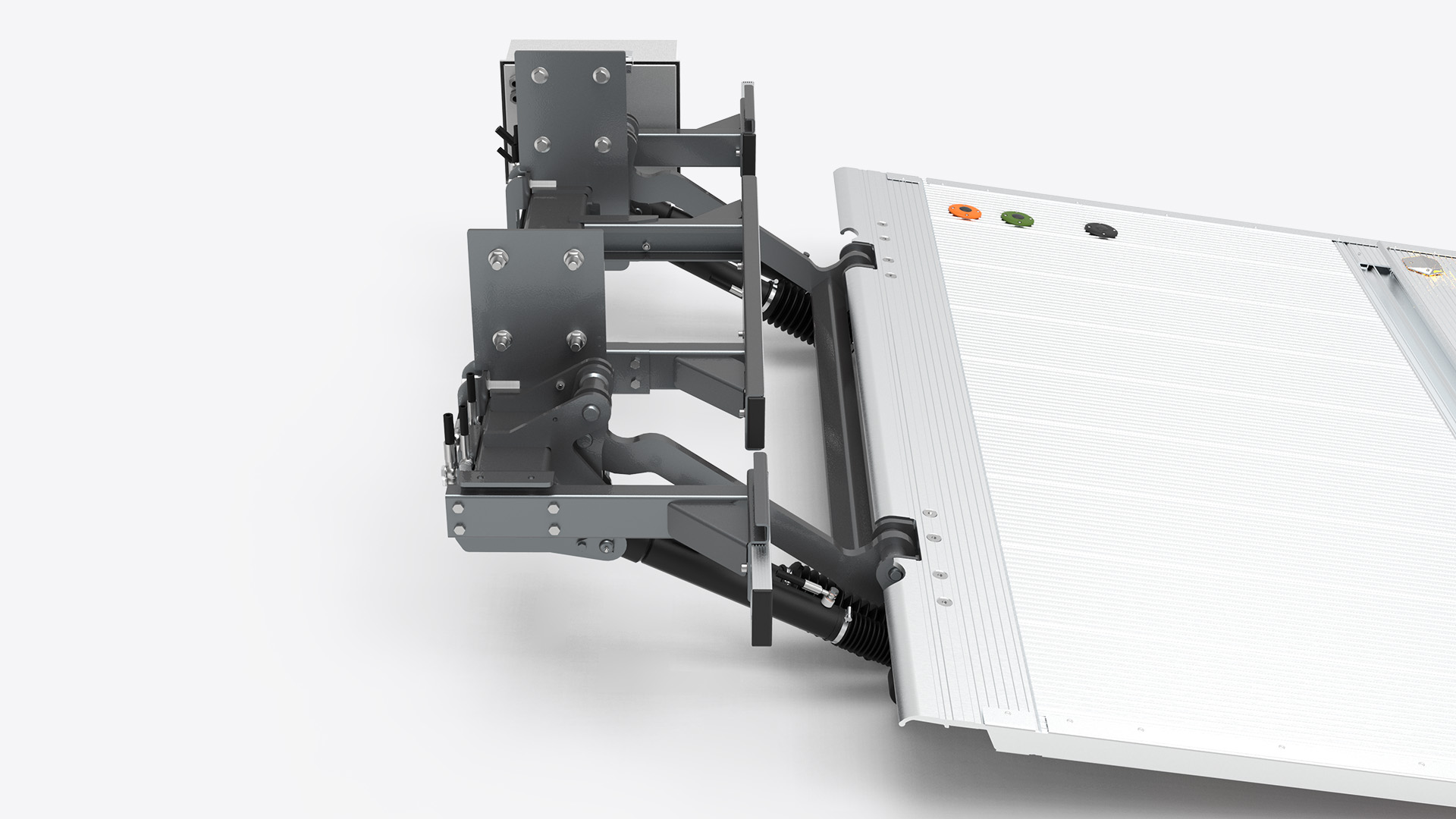

The DM 1000 Series integrates easily into the truck chassis thanks to bolt-on mounting plates. This system:
The DM 1000 Series offers a balanced solution for urban distribution operations and regional transportation needs. With its compact dimensions and reliable hydraulic system, it adapts perfectly to mid-segment truck fleets.
The DM 1000 Series is applicable to trucks of different makes and models in the 3.5–7.5 ton range. It offers broad coverage in the mid-segment commercial vehicle class.

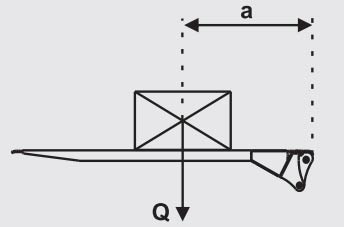

| a(mm) | Q (kg) |
| 600 | 1000 |
| 750 | 800 |
| 950 | 600 |
| 1400 | 400 |
| Type | Width | Height | Net weight |
| ALM30 | 2200mm | 1800mm | 112kg |
| ALM30 | 2200mm | 1600mm | 102kg |
| ALM30 | 2200mm | 1400mm | 85kg |
| ALM30 | 2200mm | 1200mm | 75kg |

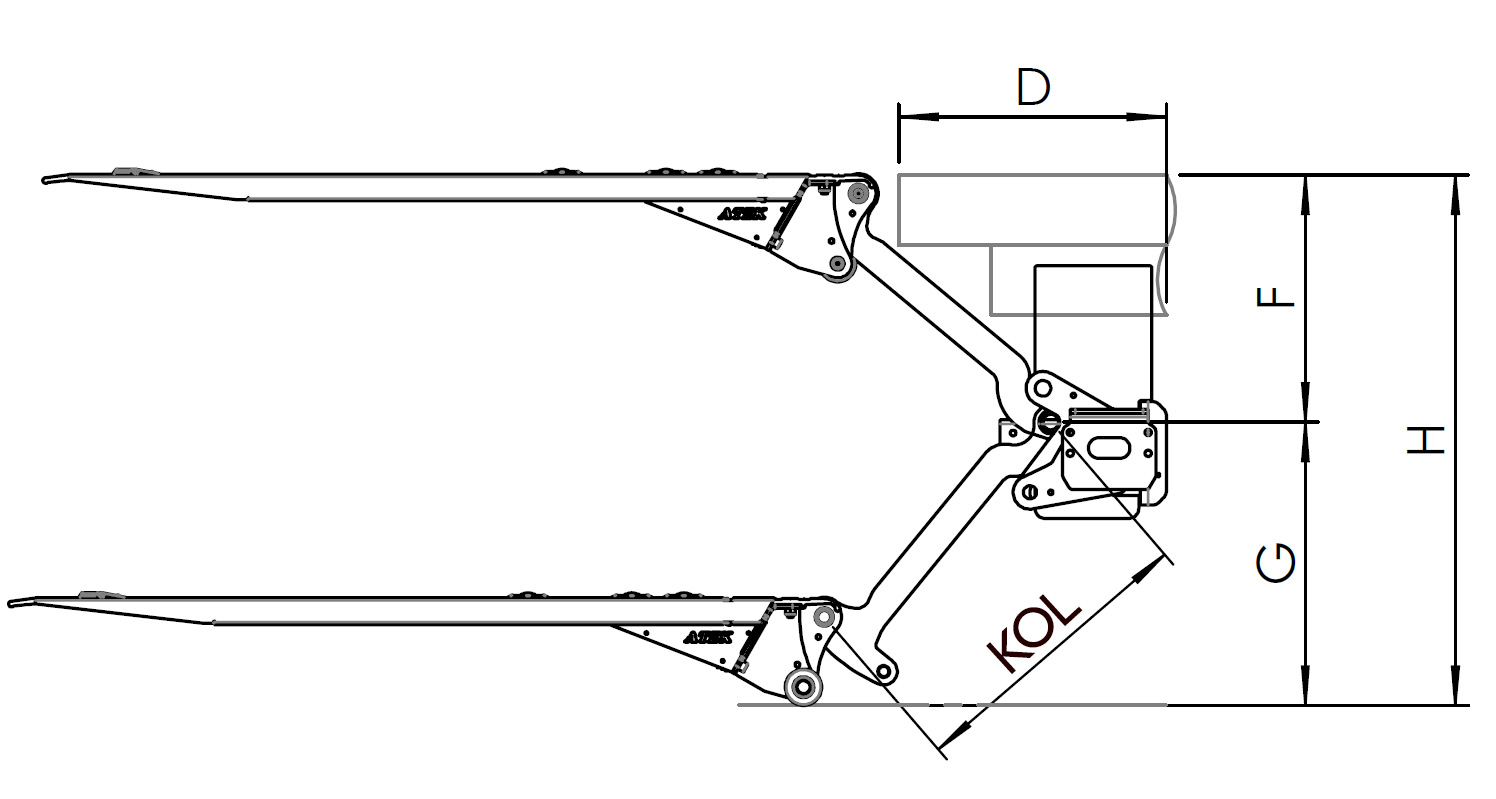

| Sleeve Lengths | 575mm | 650mm | 750mm |
| H | 940mm | 1060mm | 1185mm |
| F(max) | 465mm | 510mm | 575mm |
| F(min) | 250mm | 250mm | 300mm |
| G(max) | 475mm | 550mm | 610mm |
| D(max) | 730mm | 810mm | 900mm |
| D(min) | 575mm | 635mm | 715mm |
