The ATEK Lift DM 1500 Series is a heavy-duty tailgate lift solution designed specifically for trucks with a gross carrying capacity of 7.5 tons and above. With balanced power, durable construction, and high vehicle compatibility, it stands out for daily distribution and long-haul transportation.
The DM 1500 Series is equipped with a four-piston hydraulic structure and mechanical-type automatic folding technology. This system maintains platform stability and provides controlled movement under load.
The DM 1500 Series integrates easily into the truck chassis thanks to bolt-on mounting plates. This approach:
The DM 1500 Series is designed to deliver the same reliability whether for urban distribution or intercity transportation operations.
The DM 1500 Series is developed to be compatible with trucks of different makes and models. Applicable vehicles include various heavy-duty truck brands.

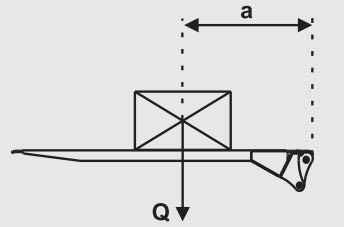

| a(mm) | Q (kg) |
| 750 | 1500 |
| 1000 | 1250 |
| 1500 | 1000 |
| Type | Width | Height | Net weight |
| ALM45 S | 2500mm | 1800mm | 122kg |
| ALM45 S | 2500mm | 1600mm | 127kg |
| ALM45 S | 2200mm | 1800mm | 137kg |
| ALM45 S | 2200mm | 1600mm | 150kg |

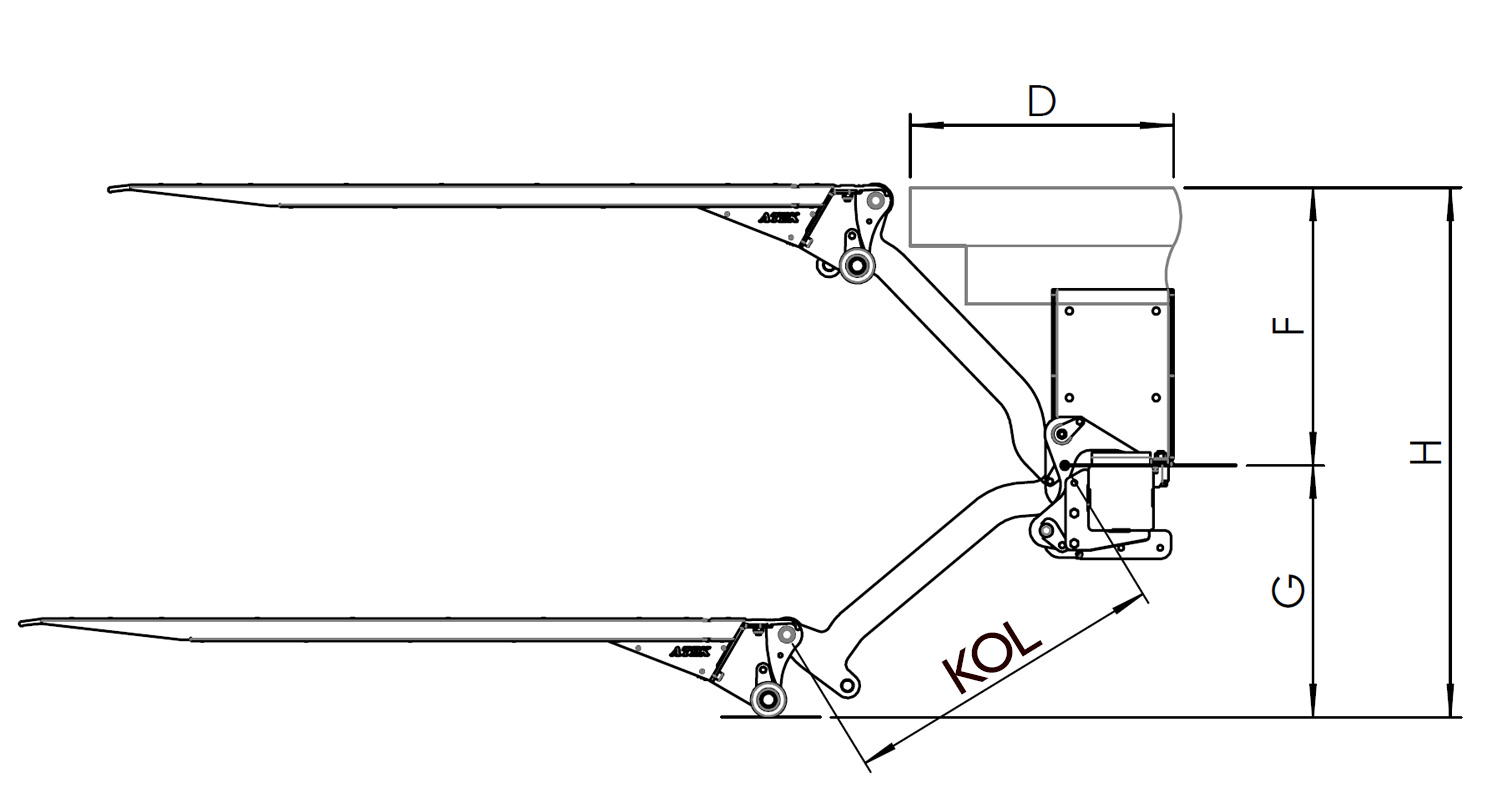

| Sleeve Lengths | 750mm | 820mm | 880mm | 950mm |
| H | 1235mm | 1320mm | 1430mm | 1510mm |
| F(max) | 635mm | 685mm | 730mm | 780mm |
| F(min) | 250mm | 300mm | 350mm | 400mm |
| G(max) | 600mm | 635mm | 700mm | 730mm |
| D(max) | 950mm | 1045mm | 1070mm | 1120mm |
| D(min) | 680mm | 760mm | 790mm | 840mm |
