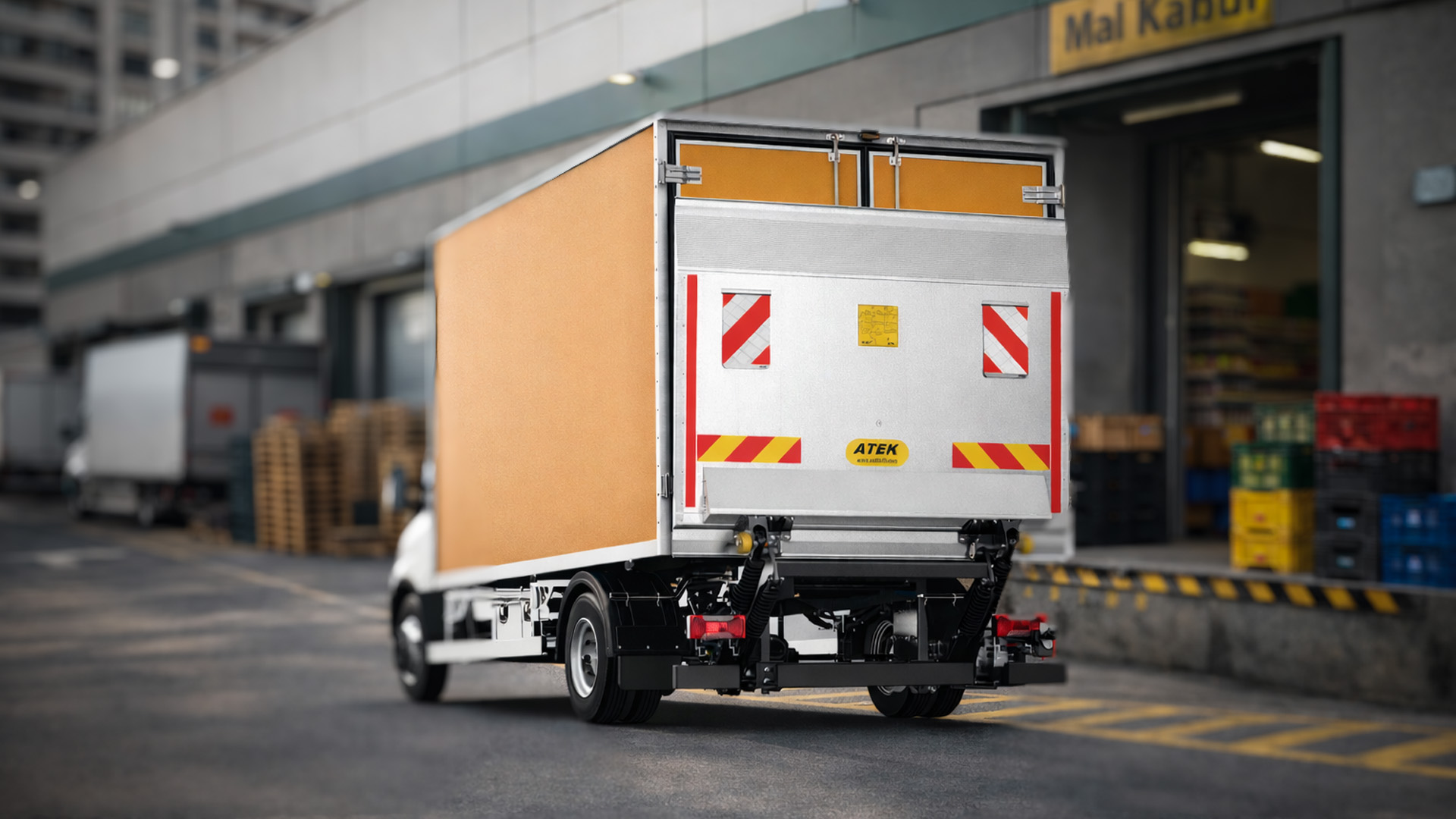

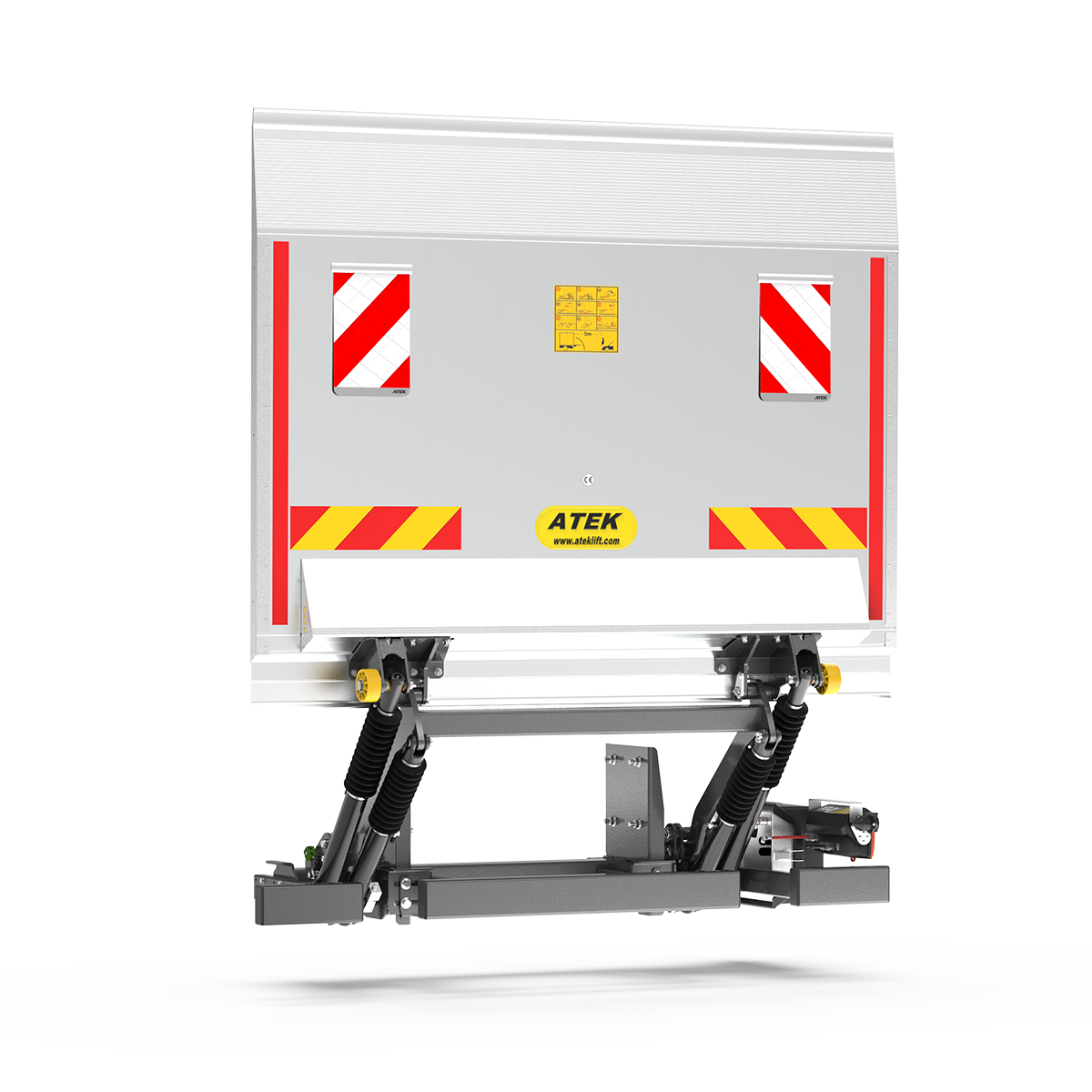

The ATEK Lift DM1500L is a lightweight version of the DM1500 series, developed for mid-segment trucks. It delivers the same engineering quality with reduced system weight.
The DM1500L is approximately 70 kg lighter than the standard DM1500 model. This represents a weight advantage of about 21%, providing direct benefits to operational capacity.
The 70 kg weight advantage offered by the DM1500L is reflected directly in the vehicle's payload capacity. This means:
The DM1500L is optimized for trucks that perform daily urban transfers. Thanks to its lightweight structure, it provides reliable performance in frequent stop-and-go operations.
The DM1500L preserves the carrying power of the DM1500 while offering lower system weight. It delivers a more balanced and efficient solution for mid-segment trucks.
| a(mm) | Q (kg) |
| 600 | 1500 |
| 750 | 1200 |
| 950 | 900 |
| Type | Width | Height | Net weight |
| ALM45 | 2500mm | 1800mm | 112kg |
| ALM45 | 2200mm | 1800mm | 102kg |
| ALM45 | 2200mm | 1600mm | 85kg |
| Sleeve Lengths | 700mm | 800mm | 880mm |
| H | 1150mm | 1250mm | 1350mm |
| F(max) | 560mm | 620mm | 670mm |
| F(min) | 300mm | 350mm | 400mm |
| G(max) | 590mm | 630mm | 680mm |
| D(max) | 845mm | 910mm | 975mm |
| D(min) | 665mm | 720mm | 785mm |
