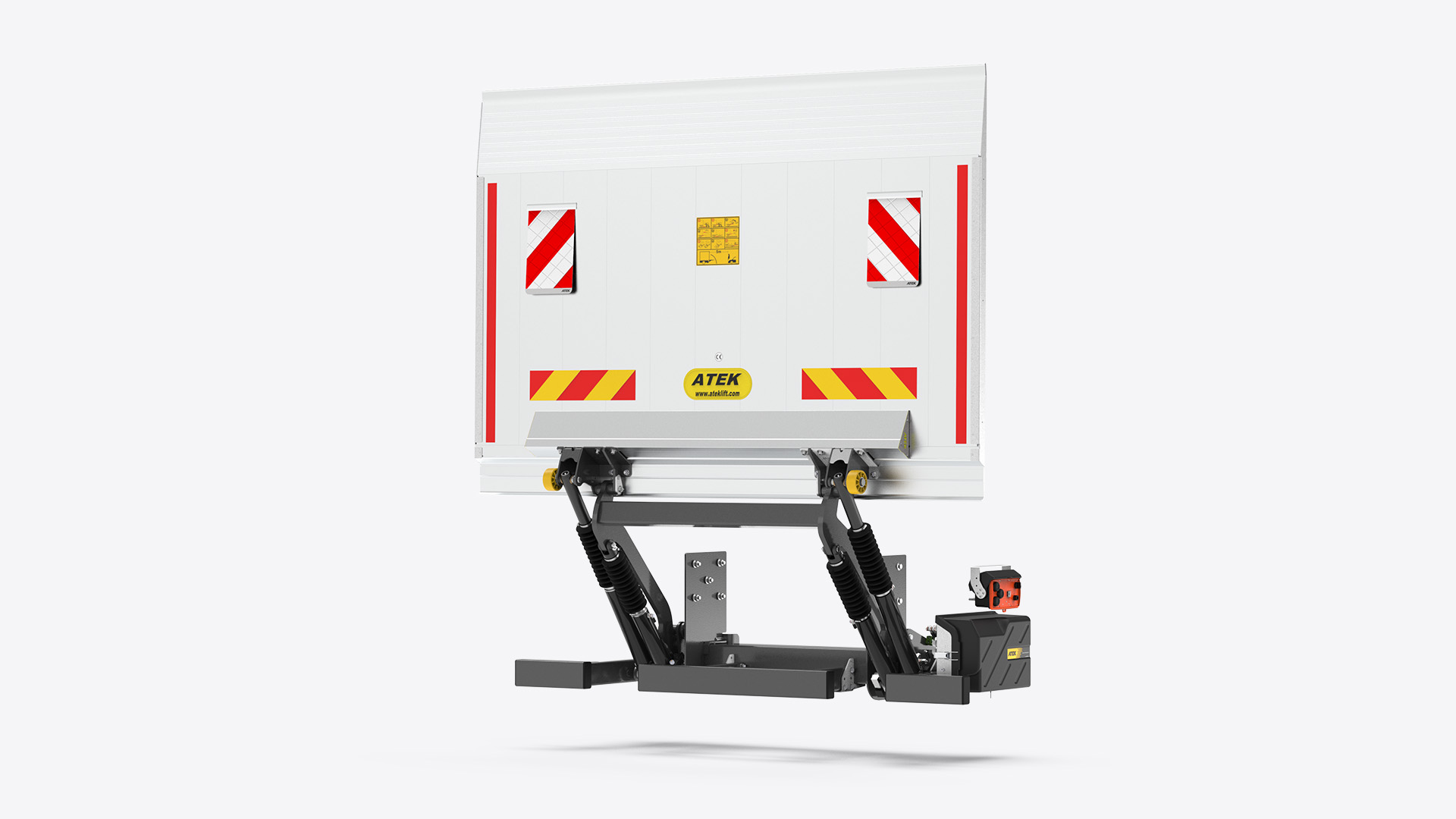

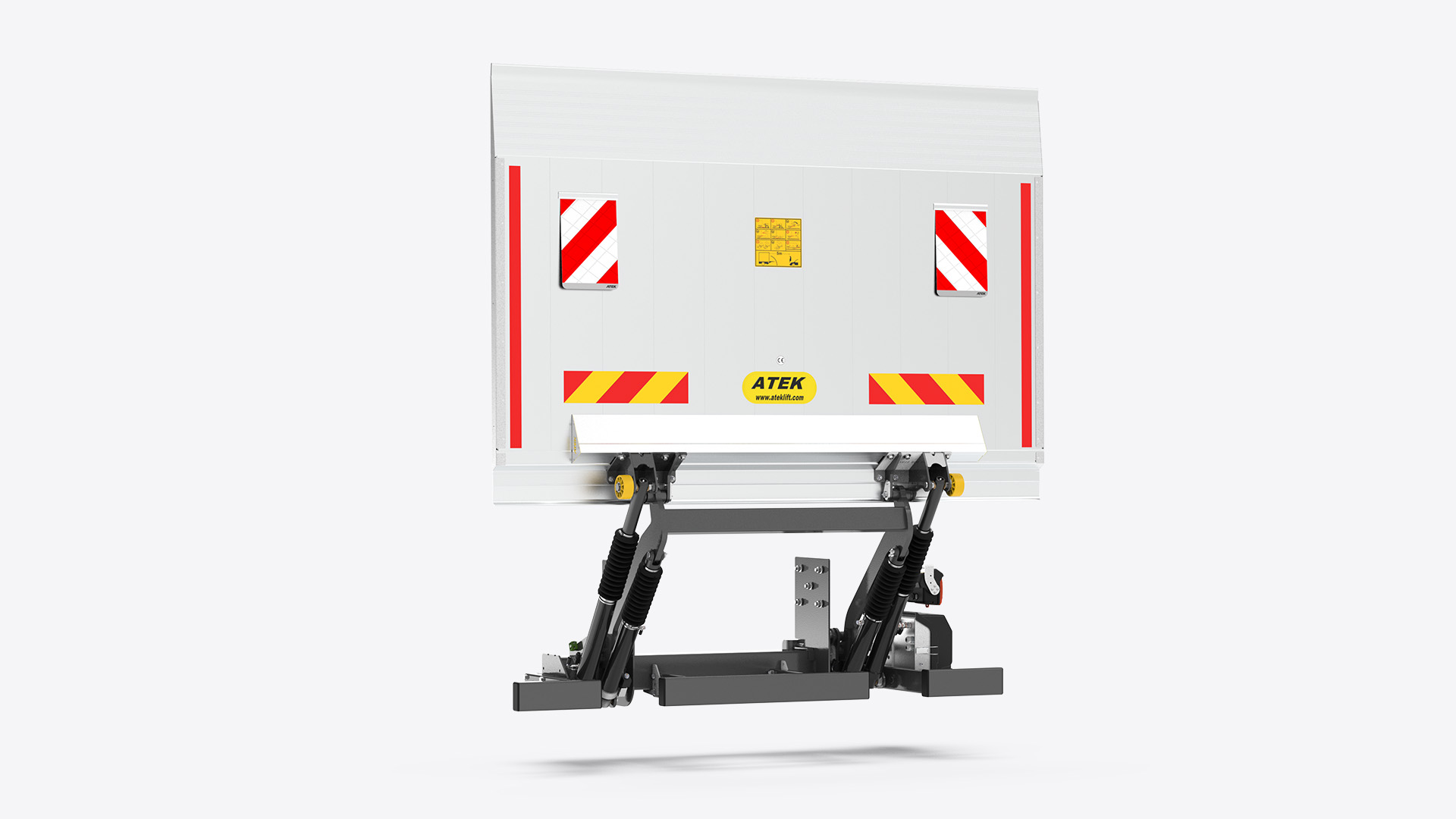

The ATEK Lift DM 2000 Series is a heavy-duty class tailgate lift solution developed for trucks with a gross carrying capacity of 7.5 tons and above. It is designed to deliver high performance under demanding operations.
The DM 2000 Series is equipped with a four-piston hydraulic structure and mechanical-type automatic folding technology. This combination maintains platform stability and provides controlled movement under load.
The DM 2000 Series lifts integrate easily into truck chassis thanks to bolt-on mounting plates. This system:
The DM 2000 Series is designed to deliver the same reliability for both urban distribution and intercity transportation operations.
The DM 2000 Series is developed to be compatible with trucks of different makes and models. Applicable vehicles include various heavy-duty truck brands.
| a(mm) | Q (kg) |
| 750 | 2000 |
| 1000 | 1500 |
| 1500 | 750 |
| Type | Width | Height | Net weight |
| ALM45 S | 2500mm | 1800mm | 122kg |
| ALM45 S | 2500mm | 1600mm | 127kg |
| ALM45 S | 2200mm | 1800mm | 137kg |
| ALM45 S | 2200mm | 1600mm | 150kg |
| Sleeve Lengths | 750mm | 820mm | 880mm | 950mm |
| H | 1235mm | 1320mm | 1430mm | 1510mm |
| F(max) | 635mm | 685mm | 730mm | 780mm |
| F(min) | 250mm | 300mm | 350mm | 400mm |
| G(max) | 600mm | 635mm | 700mm | 730mm |
| D(max) | 950mm | 1045mm | 1070mm | 1120mm |
| D(min) | 680mm | 760mm | 790mm | 840mm |
