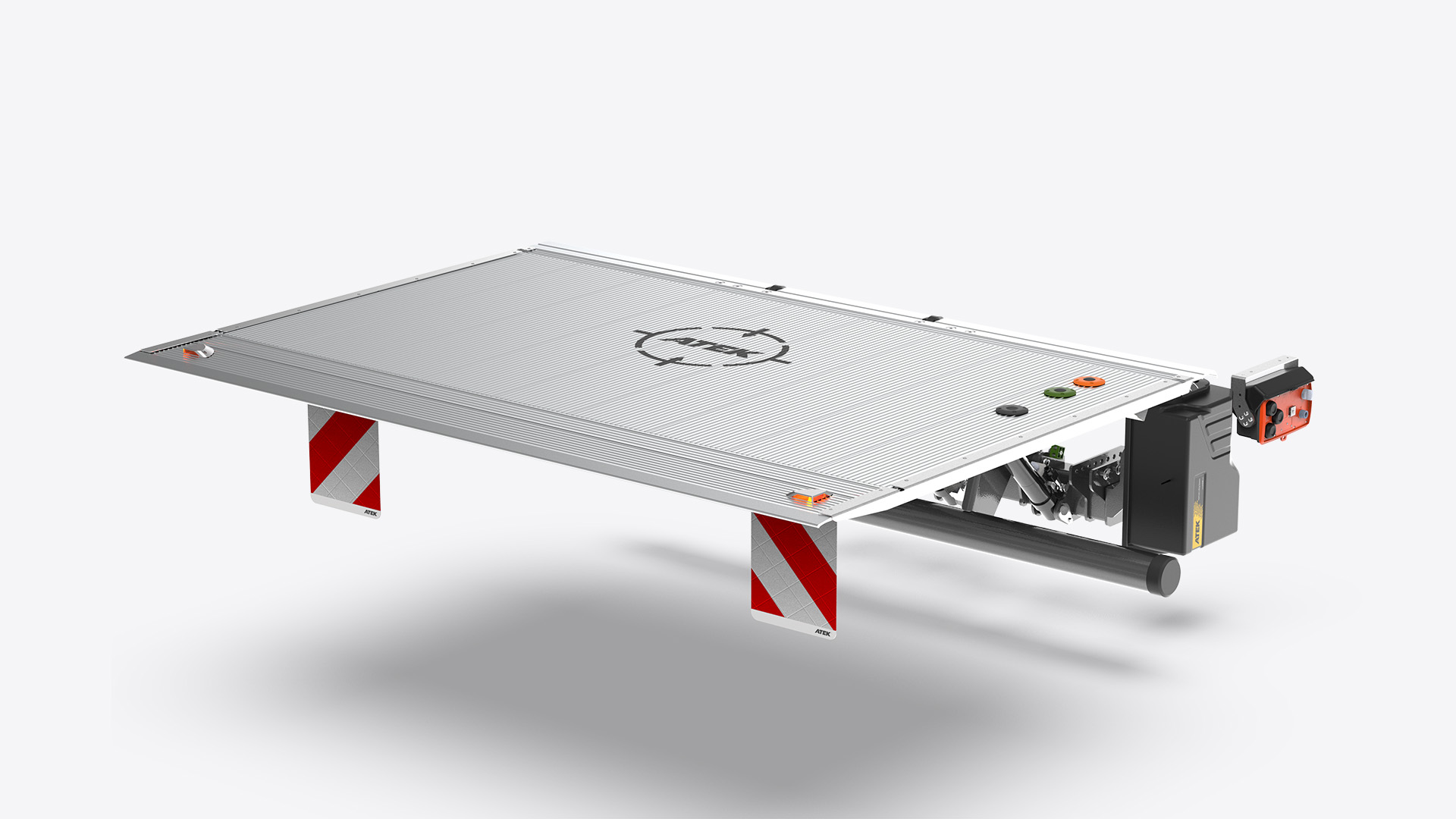

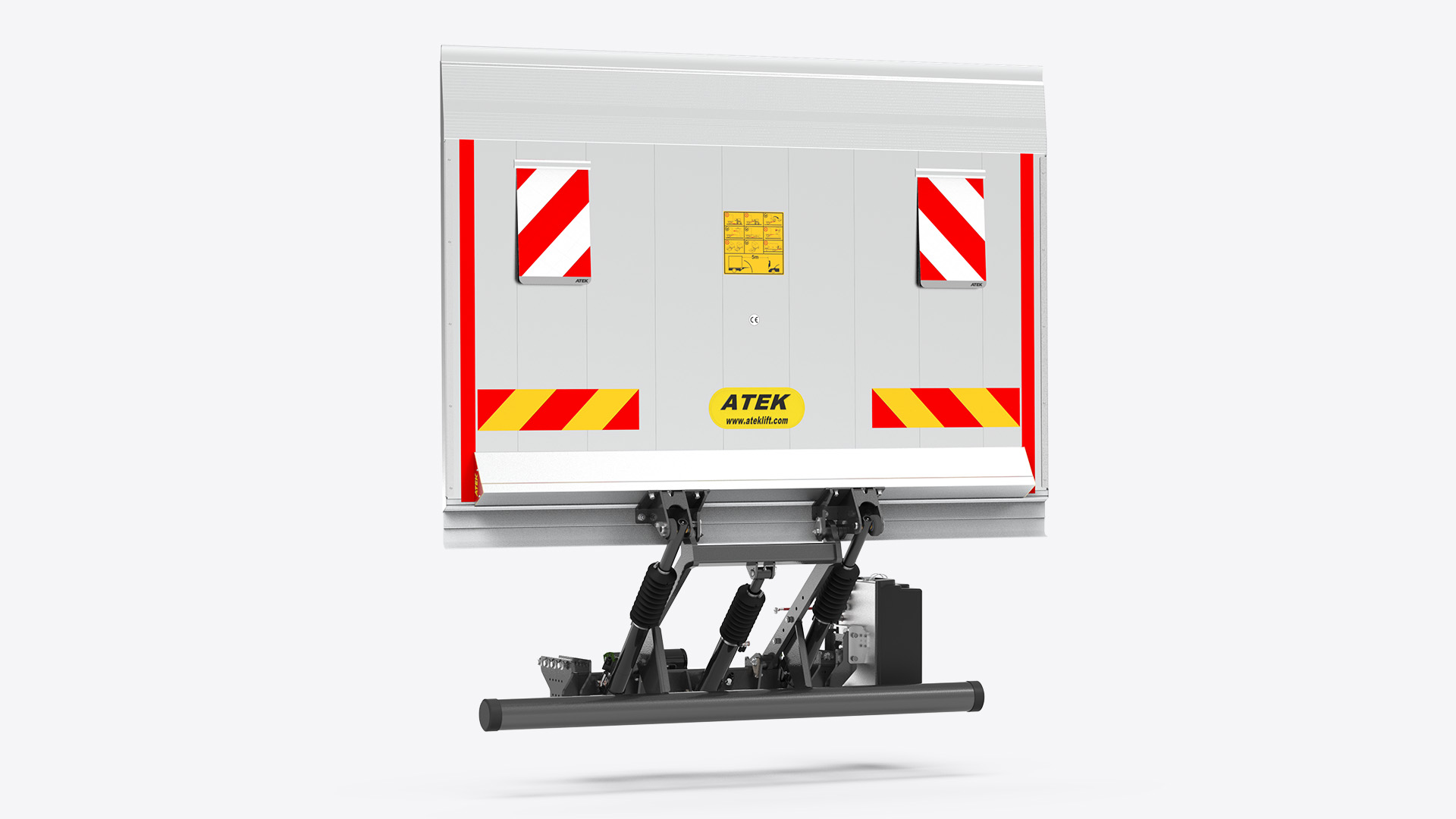

The ATEK Lift P3750 Light Truck Lift is a versatile and compact tailgate lift solution developed specifically for N1 class vehicles.
The P3750 Series, thanks to its structure designed specifically for N1 class vehicles, supports use of the same lift body with different connection brackets. This expands vehicle compatibility.
The P3750 Light Truck Lift offers a lightweight solution for N1 class vehicles with a total weight starting from 192 kg. This structure:

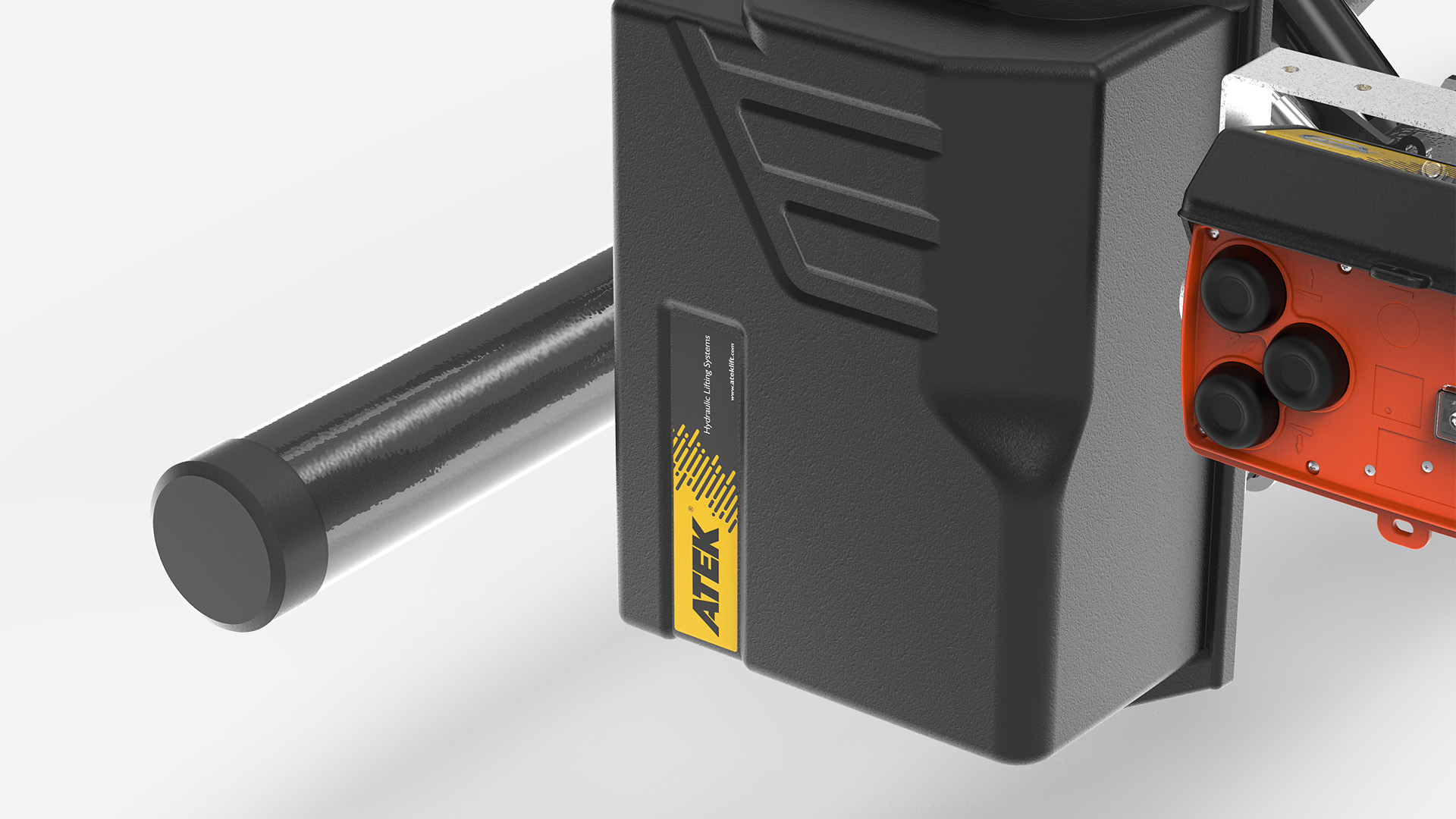

The P3750, thanks to its hydraulic system equipped with 2 folding and 1 lifting cylinders, delivers stable lifting performance. This structure provides controlled movement under load.
| a(mm) | Q (kg) |
| 600 | 750 |
| 750 | 600 |
| 1000 | 450 |
| 1400 | 300 |
| Type | Width | Height | Net weight |
| ALM30 | 2200mm | 1800mm | 106kg |
| ALM30 | 2200mm | 1600mm | 96kg |
| ALM30 | 2200mm | 1400mm | 86kg |
| ALM30 | 2200mm | 1200mm | 76kg |
| Sleeve Lengths | 650mm |
| H | 1060mm |
| F(max) | 510mm |
| F(min) | 250mm |
| G(max) | 550mm |
| D(max) | 705mm |
| D(min) | 620mm |
