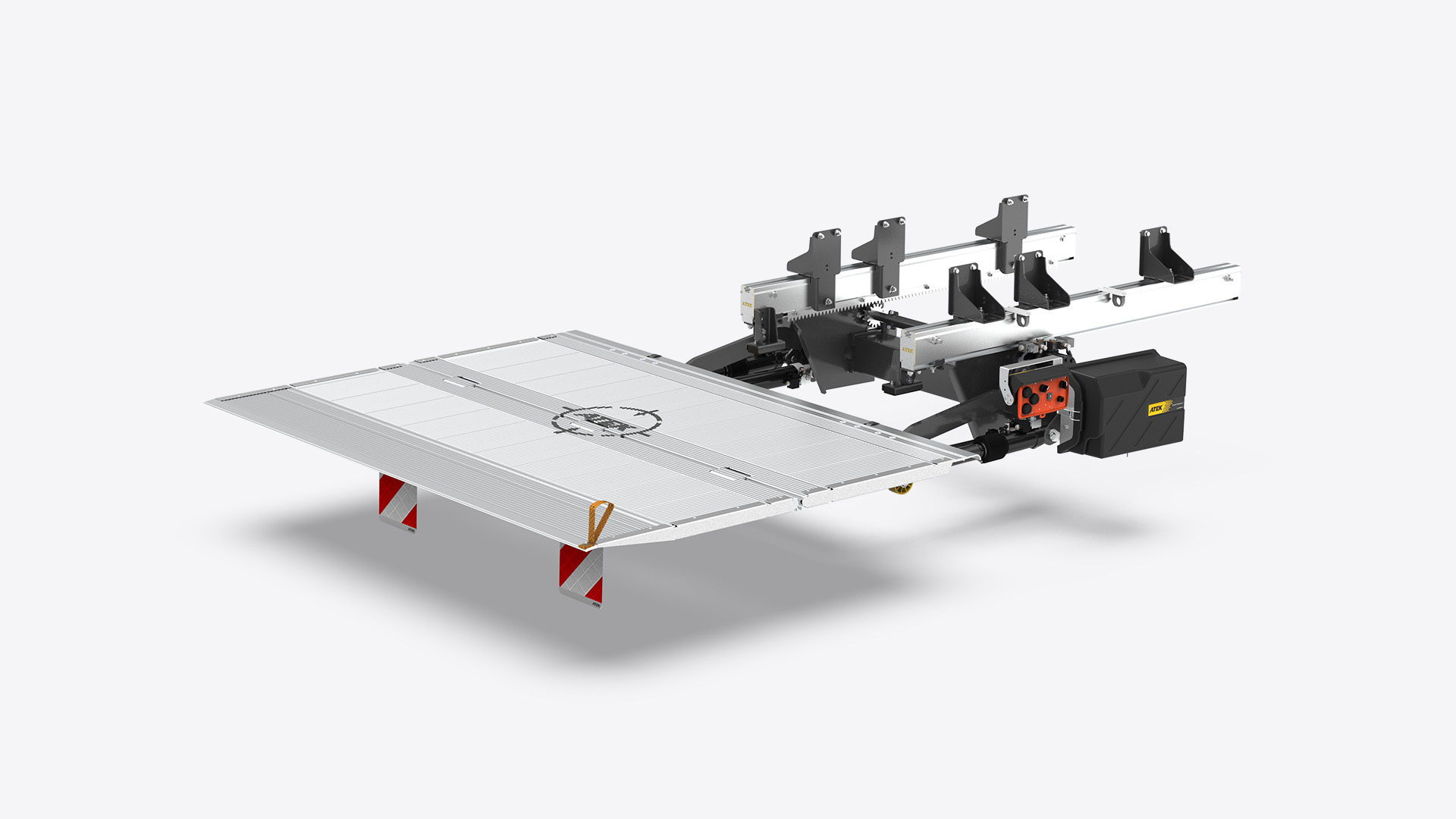

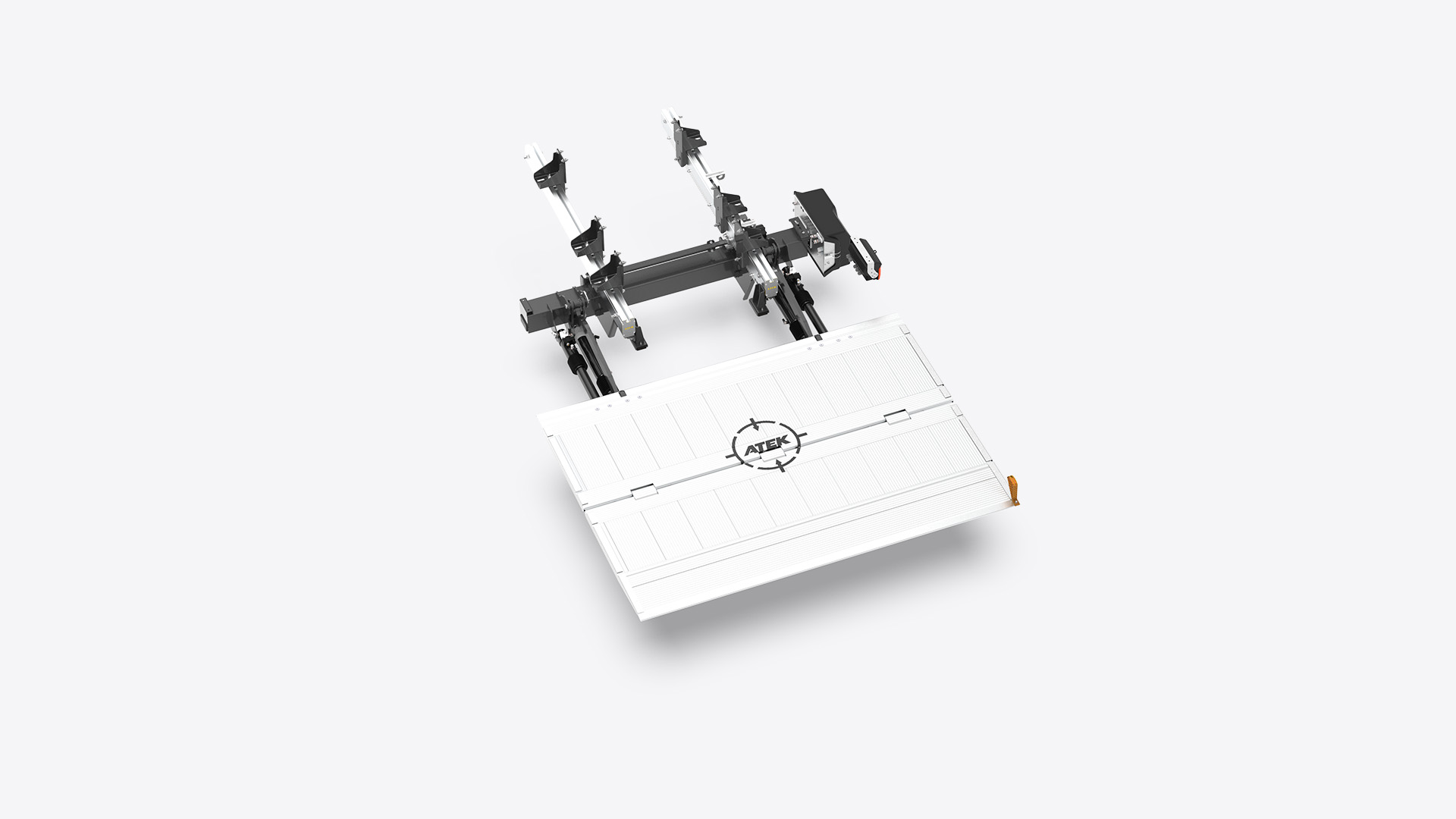

The truck-type Slider Lift is designed to leave the rear of the truck completely free when the lift is not needed. The slider mechanism keeps it tucked away when not in use.
When in the closed position, the Slider Lift functions as a certified rear bumper. The system has passed the relevant safety tests.
When loading is needed, the system is brought out from the rear in a controlled manner thanks to a motorized sliding mechanism. This way, the lift is ready for use whenever required.
| a(mm) | Q (kg) |
| n/a | n/a |
| n/a | n/a |
| n/a | n/a |
| n/a | n/a |
| Type | Width | Height |
| ALM45 SLDK AL.AL | 2400mm | 1600mm |
| ALM45 SLDK AL.AL | 2400mm | 1700mm |
| ALM45 SLDK AL.AL | 2400mm | 1800mm |
| Sleeve Lengths | 750 | 820 | 880 | 950 |
| H | 1235 | 1320 | 1430 | 1510 |
| F(max) | 635 | 685 | 730 | 780 |
| G(max) | 600 | 635 | 700 | 730 |
| LOS(1600 platform) | 1650 | 1720 | 1780 | 1850 |
| LOS(1700,1800 platform) | 1750 | 1820 | 1880 | 1950 |
