ETV C16/C20


Kaldırma yüksekliği2900 mm'den 7400 mm'ye kadar
Taşıma kapasitesi / yük1,60 ton'dan 2,00 ton'a kadar

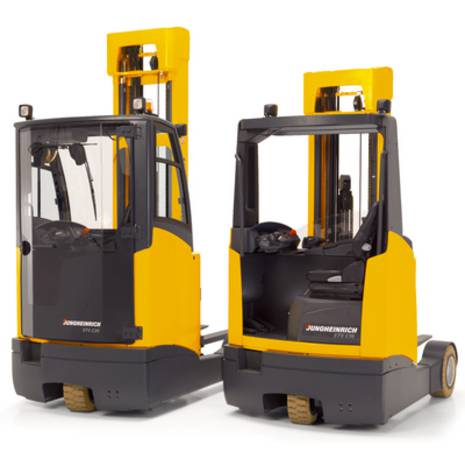

Electric reach truck (1.600 / 2.000 kg)


  • Optimal view, even with high loads, due to side-facing seat
  • Drive, lift and steering motors use 3-phase AC technology
  • Driver’s cab for frequent outdoor use (optional)
  • Sensitive operation with SOLO-PILOT control lever
  • Jungheinrich Curve Control for optimum stability

Ürün Açıklaması

High-performance mast
Jungheinrich masts ensure maximum safety and maximise space utilisation even at high lift heights:

  • Excellent load visibility.
  • Integrated side shift.
  • Lowest overhead clearance requirement at high lift heights.
  • Smooth mast tilt.
  • High quality profiles provide an extremely long lifespan.
  • High residual lift capacity even at high lift heights.
  • Lift heights of up to 7400 mm.
  • Integrated hose routing, also for auxiliary hydraulics (no hose reel).

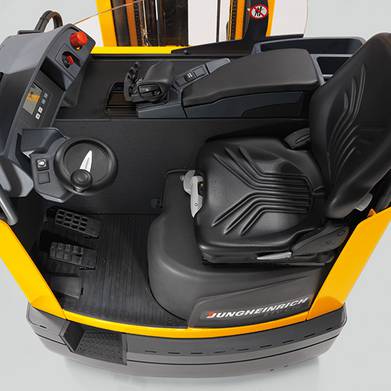

Ergonomic workstation
The operator position provides ideal working conditions for relaxed performance.

  • The entry / exit step clearly visible from above.
  • Horizontally and vertically adjustable steering wheel.
  • Comfort seat, fully adjustable for all operators (seat position / backrest height / bodyweight).
  • The side-facing seat configuration offers perfect visibility, even when transporting high loads.
  • Plenty of storage options.
  • Important truck controls are within easy reach.
  • Generous space.
  • Electric 180° steering and optimally positioned steering wheel.
  • Automatic positioning of the sideshift (centre position) at the touch of a button (optional)

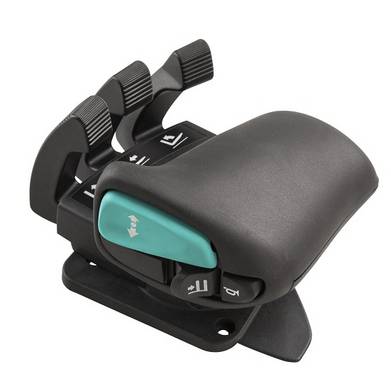

Easy operation with SOLO-PILOT
The control lever for combines all hydraulic functions ,the horn and allows selecting the direction of travel.

  • All controls are within the operator’s field of vision and a single function is clearly assigned to each one.
  • Extra attachments – e.g. a fork positioner (optional) – can be comfortably controlled with the SOLO-PILOT.
  • Precision operation by sensitive activation of all functions.
  • Comfortable posture with adjustable armrest.

Easy to read operator display

High quality instruments for displaying the most important operating data.

  • Travel direction and drive wheel position display.
  • Battery condition with discharge status display.
  • Three adjustable travel programmes to cater for every requirement.
  • Operating hours and clock.
  • Lift height (optional).
  • Load weight (optional).

More efficiency and economy using
Powerful 3rd Generation AC technology for drive, lift and steering offers many advantages over conventional DC motors.

  • Powerful acceleration.
  • Quick reversing without delay.
  • High operational availability due to maintenance free motors without carbon brushes.
  • Longer operational times through regenerative battery charging when reducing travel speed.
  • Two year guarantee on drive and lift motors.

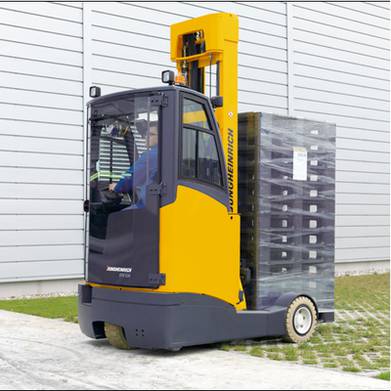

All weather cabin (optional)

  • All weather cabin in 3 variations (Economy/Comfort 1/ Comfort 2) for the protection of the operator in regular outdoor usage.
  • “Economy” with roof and front screen.
  • “Comfort 1” with roof, front and side screens for protection against frequent rain.
  • “Comfort 2” with roof, front & side screens and door for all round protection.
